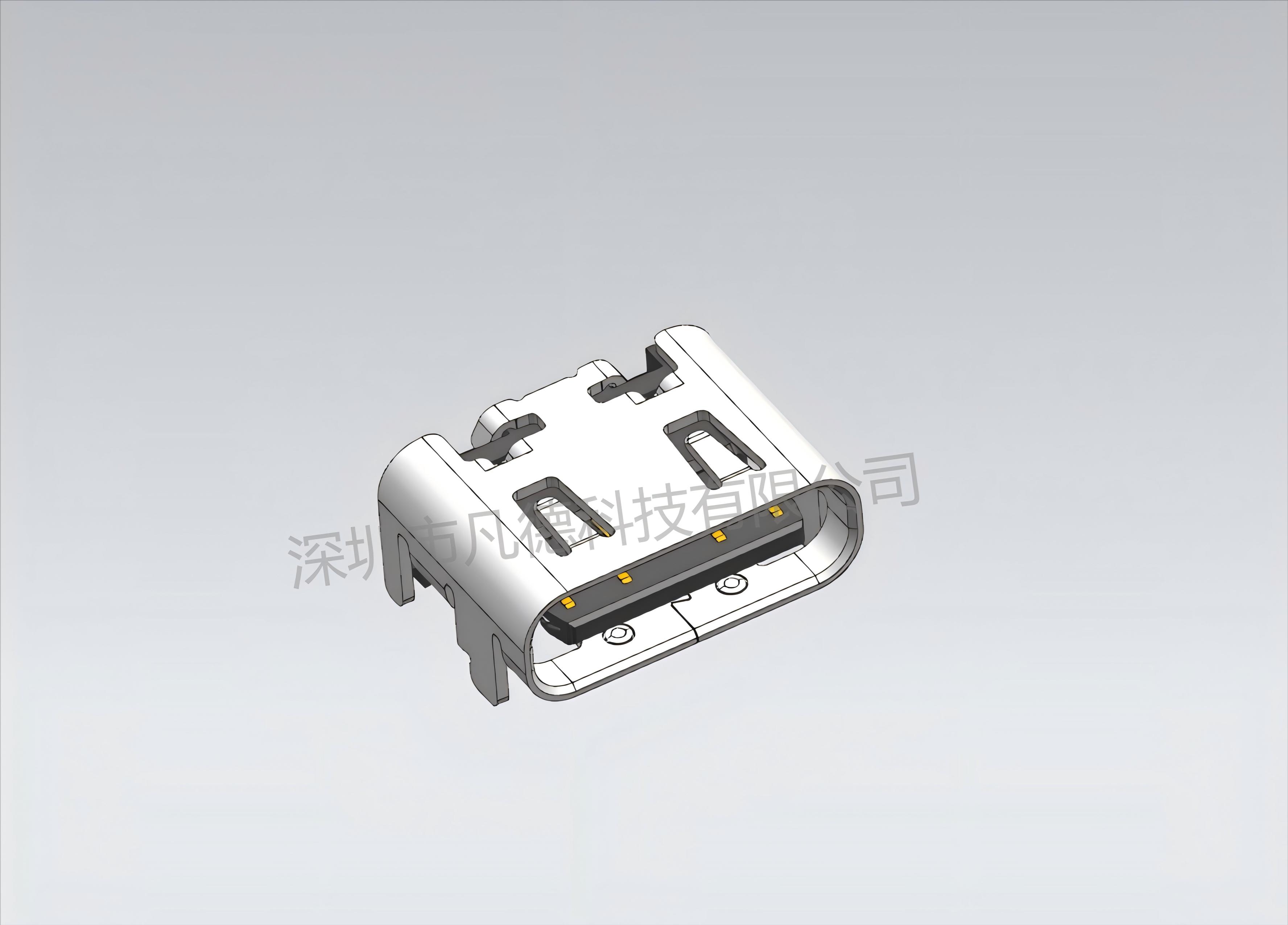

USB2.0 Type C Receptacle Connector

USB2.0 Type C Receptacle Connector

公母：母座

触点数量：16PIN

触头镀层：Copper Alloy Ni underplatingoverall,Gold plating at contact area

外壳材质：Stainless stell Ni plating overall

额定电流：3A&5A&8Afor VBUS, 0.5A for VCONN,0.25A for other pins.

接触阻抗：40mΩ(MAX)initial for all contacts

绝缘阻抗：200V DC/0.1s/100 MΩ.

耐电压：100V AC/0.1s/0.5mA

工作温度：-40°C~ +105°C

耐久性：Mating & unmating 10000 cycles minimum

￥ 0.00
0.00


公母：母座

触点数量：16PIN

触头镀层：Copper Alloy Ni underplatingoverall,Gold plating at contact area

外壳材质：Stainless stell Ni plating overall

额定电流：3A&5A&8Afor VBUS, 0.5A for VCONN,0.25A for other pins.

接触阻抗：40mΩ(MAX)initial for all contacts

绝缘阻抗：200V DC/0.1s/100 MΩ.

耐电压：100V AC/0.1s/0.5mA

工作温度：-40°C~ +105°C

耐久性：Mating & unmating 10000 cycles minimum
